2023 Neo Trailers NASA Sport Trailer

Specifications

Description

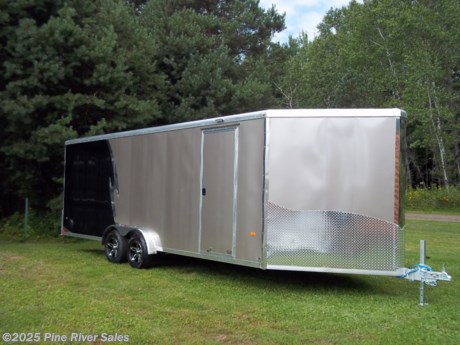

Neo's NASA aluminum enclosed sport trailer is great for hauling snowmobiles and other vehicles. These trailers are designed to be high quality and long lasting. The NASA ranges in lengths from 17' to 29' with a width of 7 ft and an interior height of 78.5''. It has a GVWR of 7,000lbs. The NASA comes with the standard features below along with available upgrade options.

Standard Features                **Pictures above are not specific to an individual trailer**

• Round-Top: Max Coverage Radius Extrusion
• Original Forerunner of the All-Sport Industry
• All Aluminum/Engineered with CNC Parts
• Integrated A-Frame Tongue
• 2 5/16" Coupler
• Dual Ramps, Signature SS NXP Latch System
• Door Protector, saves the side door from skis
• Tandem Dexter Sprung Axles, 7000# GVWR
• Self Adjusting Electric Brakes, EZ Lube Hubs
• ProFlap™, Ramp Door Flap, Outside Hinge
• Aluminum Grab Handles, 1 per ramp door
• Flush Lock Curbside Door - 32"
• Cast Aluminum Side Door Hold-back
• Seamless Aluminum Roof and Bonded Exterior
• Tongue Jack - Zinc Coated
• Stone Guard - 24" ATP
• Marine Deck Plywood Floor - 3/4"
•  3/4" Marine Deck Kickplate - 12"
• 16" O/C Roof and Walls
• 24" O/C Floor
• LED Interior/Exterior Lights
• 2 - 12v LED Dome Lights
• 15" Silver Mod Radials 205 75 R15(4)

Available Upgrades

Exterior

• DIFFERENT COLORS
• DIFFERENT DESIGN

Rear Door

• DIFFERENT MATERIAL
• TRANSITION FLAPS

Rear Door Options

• MARINE DECK PLYWOOD
• NUDO PLYWOOD RAMP, NXP STAINLESS LATCH SYSTEM(UPGRADE)
• THRESHOLD
• TRANSITION FLAP

Side Door Options

• ADD 15" X 30" WINDOW
• ADD ALUMINUM BAR LOCK
• FLUSH LOCK, CURB SIDE
• FLUSH LOCK, ROAD SIDE
• RV DOOR WITH WINDOW, SCREEN DOOR INCLUDED

Additional Door Options

• ACCESS DOOR, FOAM CORE, FLUSH LOCK, 30" X 24", SIDE HINGE
• FUEL DOOR 14" X 14", FLUSH LOCK
• GENERATOR DOOR 30"W X 24"H, VENT, TOP HINGE

Power Light Packages

• 120V QUARTZ LIGHT W/ LIGHT BOX TUB
• 12V LED FLOOD LIGHT W/ LIGHT BOX/SWITCH, PAIR
• EXTRA 12V DOME LIGHT
• EXTRA 48" LED, 120V
• LED PACKAGE, 2 LIGHTS, 12V, 39"
• LED PACKAGE, 4 LIGHTS, 12V, 39"
• LOADING LIGHT, EXTERIOR, W/ INTERIOR SWITCH
• POWER PACKAGE 1, LED, 110V, 48"
• POWER PACKAGE 2, LED, 110V, 48"
• POWER PACKAGE 3, LED, 110V, 48"
• POWER PACKAGE 4, LED, 110V, 48"
• SCENE LIGHT, EXTERIOR, HIGH POWER
• UNDER CABINET LIGHTS, PAIR

Electric Option Add-Ons

• 12V ACCESSORY BATTERY, WIRED, WHITE BOX 15"X10"X10"
• 3 WAY SWITCH 120V
• 3 WAY SWITCH 12V
• 30 AMP PANEL W/ 1, 15 AMP BREAKER
• 50 AMP PANEL UPGRADE FROM 30 AMP(PWR PACKAGE REQUIRED)
• 50 AMP PANEL W/ 1, 15 AMP BREAKER
• AC 13,500 LOW-PRO W/ (ADD BRACE AND WIRE, 50 AMP PANEL)
• AC 13,500 W/ HEAT STRIP(ADD BRACE AND WIRE, 50AMP PANEL)
• EXTRA 120V SWITCH
• EXTRA 12V SWITCH
• EXTRA DOME LIGHT, LED, 12V
• EXTRA GFI RECEPT
• EXTRA MARKER LIGHT, LED
• EXTRA RECEPT, 120V
• EXTRA TAIL LIGHTS, LED, PAIR(2)
• LOADING LIGHT, EXTERIOR W/ SWITCH
• MOTOR BASE PLUG, STANDARD LOCATION ONLY
• REVERSE LIGHTS, PAIR(2)
• SCENE LIGHT

Floor Liner Options

• CHECKERBOARD VINYL OVERLAY
• COIN RUBBER OVERLAY
• MARINE DECK PLYWOOD FLOOR, 3/4"
• NUDO (3/4" DUAL HDP LAMINATED PLYWOOD)

Wall Options

• 3/4" PLYWOOD
• 3/8" PLYWOOD
• WHITE VINYL
• WHITE VINYL AND 3/4"X12" SCUFF

Vent/Window Options

• 12V ROOF SUPER VENT
• BLACK OR WHITE PLASTIC SIDE VENT(3")
• BRACE/WIRE FOR AC
• MANUAL ROOF VENT
• ROOF VENT COVER MAXXAIR
• SALEM WALL VENT AND GARNISH
• WINDOW, 15"X30", SLIDER, SCREEN
• WINDOW, 30"X30", SLIDER, SCREEN

Exterior Options

• 10' AWNING, ONYX, BLACK HARDWARE
• 12' AWNING, ONYX, BLACK HARDWARE
• 14' AWNING, ONYX, BLACK HARDWARE
• 16' AWNING, ONYX, BLACK HARDWARE
• 18' AWNING, ONYX, BLACK HARDWARE
• 3500# ELECTRIC JACK
• 36" STANDARD STONE GUARD
• 48" STANDARD STONE GUARD
• 8' AWNING, ONYX, BLACK HARDWARE
• ADDITIONAL ALUMINUM GRAB HANDLE
• ADDITIONAL RAMP DOOR RUBBER
• ALUMINUM LADDER
• ALUMINUM SKID PLATES, PAIR
• ALUMINUM SLIDE OUT STEP, TUBULAR
• BOGIE WHEELS, PAIR
• CABLE HATCH, BLACK(EXTENSION CORD ACCESS)
• LADDER RACKS, INSTALLED, PAIR
• NEO PROSTAB JACKS, TELESCOPING TUBULAR ALUMINUM
• STABILIZER JACKS, SCISSOR(PAIR), BLACK STEEL
• TIRE MOUNT, EXTERIOR, INSTALLED

Interior Options

• ATP KICK PLATE
• D RING, HEAVY DUTY, 5000#, RECESSED
• D RING, MEDIUM DUTY, 1200#, SURFACE MOUNT
• E TRACK, ALUMINUM, RECESSED FLOOR
• E TRACK, ALUMINUM, RECESSED WALL
• E TRACK, ALUMINUM, SURFACE MOUNT, FLOOR ONLY
• E TRACK, FLOOR, SURFACE MOUNT E TRACK, WALL SURFACE MOUNT
• IN FLOOR BATTERY BOX, NO WIRING, 11"X13"X11"
• INSULATION, POLYSTYRENE 1", CEILING
• INSULATION, POLYSTYRENE 1", WALLS
• L TRACK, ALUMINUM, RECESSED, FLOOR
• L TRACK, ALUMINUM, SURFACE MOUNT, FLOOR OR WALL
• NEO ALUMINUM FOLD UP BENCH 48"
• PRO TRAC RUNNERS(PAIR)
• SWIVEL TIE DOWNS, RECESSED
• TIRE MOUNT, INTERIOR, INSTALLED
• WHEEL CHOCK, CHROME
